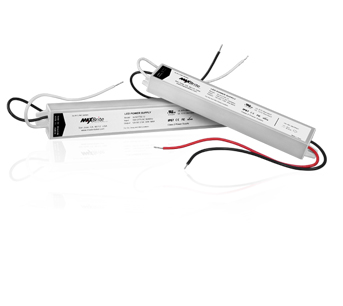

30 Watt LED Power Supply, 12V DC Constant Voltage, UL Class 2 Certified
Slim Aluminum Case Designed for Indoor or Outdoor applications


PRODUCT SPECIFICATIONS:

  •  Input Voltage: 100-277V AC full range
  •  AC Draw:    (0.26A/115V   0.14A/220V   0.11A/277V)
  •  Frequency: 47hz to 63hz
  •  Output Voltage: 12V DC 2.5 amps
  •  Output Power:   30W (2.5A) Max
  •   Efficiency: 80%
  •  Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
  •  Leakage Current: 0.25mA/240 AC
  •  Ripple and Noise: 100mVp-p
  •  Inrush Current:   25°c cold start, 30A at 230AC

ENVIRONMENTAL:

  •  Operating Temperature: -22° to +158°F
  •  Humidity: 20%-90% (RH-NonCondensing)
  •  Cooling:   Air Convection
  •  Vibration Frequency: 10 to 50 Hz
  •  MTBF: Khrs min MIL-HDBK-217F (25°C)

  •  Energy efficient, eco-friendly environment
  •  Certified: UL879, UL1310 Class 2 recognized
  •  Waterproof: IP67 rated for dry, damp and wet locations


Product Dimensions: 8-3/4'' x 1-3/16'' x 3/4" (L x W x H)
Package Weight:       8.00 oz.


Applications:
Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway, etc...



HIGH QUALITY - 100% Satisfaction Guaranteed.
