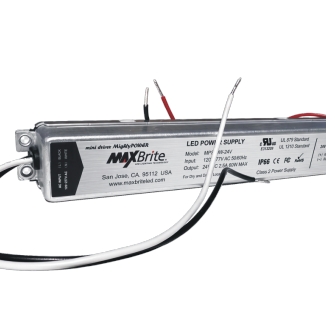

60 Watt LED Power Supply, 24V DC Constant Voltage, UL Class 2 Certified
Slim Aluminum Case Designed for Indoor or Outdoor applications


PRODUCT SPECIFICATIONS:

  •  Input Voltage: 120-277V±10% AC full range
  •  AC Draw:    (0.6A/120V   0.4A/240V   0.3A/277V)
  •  Frequency: 50hz to 60hz
  •  Output Voltage: 24V DC 2.5 amps
  •  Output Power:   60W Max
  •   Efficiency: (89% 120V   91% 240V   91% 277V)
  •  Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
  •  Leakage Current: <1mA/240V AC
  •  Ripple and Noise: 1000mVp-p
  •  Inrush Current:   cold start, 40A at 240AC

ENVIRONMENTAL:

  •  Operating Temperature: -30° to +50°C
  •  Humidity: -40°c to +80°c 10-95%RH
  •  Cooling:   Air Convection
  •  Vibration Frequency: 10 to 500 Hz

  •  Energy efficient, eco-friendly environment
  •  Certified: UL879, UL1310 Class 2 recognized
  •  Weatherproof: IP66 rated for dry and damp locations


Product Dimensions: 6-7/8'' x 1-1/16'' x 13/16" (L x W x H)
Package Weight:       6.40 oz.


Applications:
Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway, etc...
