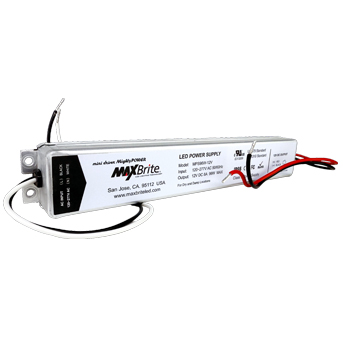

96 Watt LED Power Supply, 12V DC Constant Voltage, UL Class 2 Certified
Slim Aluminum Case Designed for Indoor or Outdoor applications


PRODUCT SPECIFICATIONS:

  •  Input Voltage: 120-277V±10% AC full range
  •  AC Draw:    (0.92A/120V   0.46A/240V   0.41A/277V)
  •  Frequency: 50hz to 60hz
  •  Output Voltage: 12V DC 8 amps
  •  Output Power:   96W Max
  •   Efficiency: 89% (AC120V), 91% (AC240V-AC277V)
  •  Over Current Protection: Over 105% of Rating ( recovers automatically after fault condition is removed )
  •  Leakage Current: <1mA/240V AC
  •  Ripple and Noise: 1000mVp-p
  •  Inrush Current:   Cold Start, 40A/240V AC

ENVIRONMENTAL:

  •  Operating Temperature: -22° to +122°F
  •  Humidity: 20%-95% (RH-NonCondensing)
  •  Cooling:   Air Convection
  •  Vibration Frequency: 10 to 500 Hz

  •  Energy efficient, eco-friendly environment
  •  Certified: UL879, UL1310 Class 2 recognized
  •  Weatherproof: IP66 rated for dry and damp locations


Product Dimensions: 8-1/2'' x 1-5/16'' x 13/16" (L x W x H)
Package Weight:       9.65 oz.


Applications:
Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway, etc...



HIGH QUALITY - 100% Satisfaction Guaranteed.
