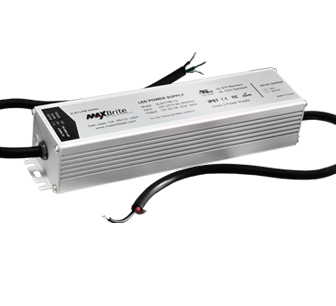

60W LED Power Supply 100-277V AC Input Slim Line Series

Model No: SLS27760-12 SLIM LINE 60W LED POWER SUPPLY
100-277V AC input, 12V DC output

Qty In Stock: 43

Price: $33.29 As low as $24.97
Quantity:
Have a Question?
Quantity Discount
1   plus   $24.97ea.
5 Year Warranty

60 Watt LED Power Supply, 12V DC Constant Voltage, UL Class 2 Certified
Slim Aluminum Case Designed for Indoor or Outdoor applications



PRODUCT SPECIFICATIONS:

  •  Input Voltage: 100-277V AC full range
  •  AC Draw:    (0.86A/100V   0.37A/230V   0.31A/230V)
  •  Frequency: 47hz to 63hz
  •  Output Voltage: 12V DC 5 amps
  •  Output Power:   60W (5A) Max
  •   Efficiency: 86%
  •  Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
  •  Leakage Current: 0.25mA/240 AC
  •  Ripple and Noise: 100mVp-p
  •  Inrush Current:   25°c cold start, 30A at 240AC


ENVIRONMENTAL:

  •  Operating Temperature: -22° to +158°F
  •  Humidity: 20%-90% (RH-NonCondensing)
  •  Cooling:   Air Convection
  •  Vibration Frequency: 10 to 50 Hz
  •  MTBF: Khrs min MIL-HDBK-217F (25°C)

  •  Energy efficient, eco-friendly environment
  •  Certified: UL879, UL1310 Class 2 recognized
  •  Waterproof: IP67 rated for dry, damp and wet locations


Product Dimensions: 7-9/16'' x 1-13/16'' x 1-1/2" (L x W x H)
Package Weight:       1.22 lbs.


Applications:
Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway, etc...



HIGH QUALITY - 100% Satisfaction Guaranteed.
